Control of temperature and moisture

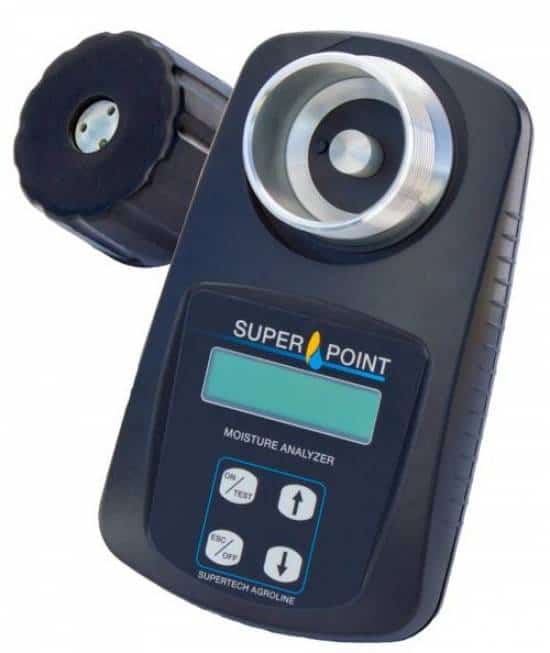

the portable grain moisture meter with built-in grinder

The Superpro is also used for regular moisture measurement during the drying process and during storage to avoid deterioration of quality or spoilage.

Reliable and quick measurement of grain moisture

• Easy to operate
• Built-in grinder and compressor
• Proven accurate moisture measurements
• Automatic temperature compensation
• Automatic calculation of average value
• High measuring range
• Adjustment of calibrations
• Back light display for easy reading
• Invented and produced in Denmark

Quick and easy

The Superpro is a sturdy tool with a unique built-in grinder made of hardened galvanized steel and a casing made of shockproof ABS plastic. It comes in a shockproof carrying case, so you can take it with you on the tractor, in the granary, etc.
The robust design makes the Superpro very handy. With the local language in the display and pre-programmed with crops, the Superpro is quick and easy to use. The backlit display is easy to read, even in poor light conditions.

Portable and reliable companion

Effective grain storage is essential for ensuring crop quality and preventing loss of product. Accurate moisture management is key to safe storage.
The Superpro is a new generation of digital grain moisture analyzers that gives consistent test results. In a single operation, the portable Superpro moisture analyzer grinds and compresses the grain. Along with automatic temperature compensation, the built-in grinder leads to more reliable results.

Principle of measurement in the Superpro

The Superpro measures the conductivity and temperature of a grain sample. The exact moisture value is calculated by means of an advanced measurement technique, developed through many years of hands-on experience.
The grinding and compression process homogenizes the sample, guaranteeing a high reliability of the Superpro when measuring grain in the field or in storage.

Average readings for better accuracy

The changing nature of grain when harvested or dried, makes average readings a significant advantage. Greater variability was seen in freshly harvested grain, compared to grain stored for some time. Traditionally, errors are frequently ±0.5% and can be greater in very wet, very dry or freshly harvested grain. The Superpro makes it quick and easy to make several separate measurements. Four to five readings will automatically be used to create a reliable average reading. By using average and calibration adjustment, the accuracy can be better than ±0.25%, in the normal moisture range.

FEATURES:

• Digital readout with accuracy to one decimal point
• Automatic temperature compensation
• Combined grinding and compression of sample
• Individual calibration for all grain types
• Can be updated with new moisture scales
• Automatic calculation of average value
• Built-in measuring cups
• Backlight display
• User friendly experience
• Native language in the display
• Grinder made of hardened galvanized steel
• Ergonomic grip
• Casing made of shockproof ABS plastic
• Supplied in shockproof carrying case

TECHNICAL SPECIFICATIONS:

• Measuring range (Moisture): 5 to 50%
• Depending on crop type
• Operating range (Temperature): 0 to 50 ºC
• Resolution: 0.1% moisture
• Temperature compensation: Automatic
• Weight including case: 2 kg
• Dimension: 13x21x8 cm
• Battery: 9 V Alkaline
• Display: 2 line LCD with backlight
• Accuracy: Better than +/- 0.25% in normal moisture range,by using average and calibration adjustments

Simple to use in four easy steps:

	STEP 1	STEP 2	STEP 3	STEP 4
	Turn on the tester by pressing the ON/TEST button. Use the arrow keys to select grain type.	Pour the sample into the grinder. The sample size is measured out in the built-in measuring cup.	Grind the sample.	Press the ON/TESTbutton and read the moisture content directly from the display.
